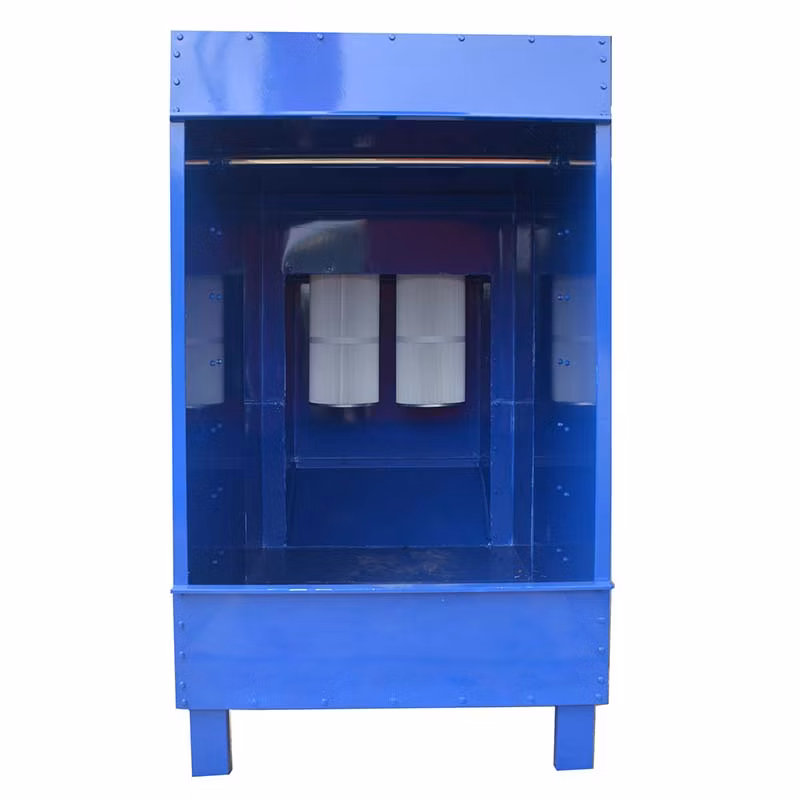

Popular Powder Coating Paint Spray Booth with Advanced Filter System
Discover our diverse selection of industrial powder coating booths designed with high-efficiency filter systems. Secure competitive rates to meet all your coating requirements.
| Structure | Assembling structure, easy to transport Ground type, staff could go inside for painting |
| External Size(mm) | 2580(W)*3355(D)*3040(H) |
| Internal Size(mm) | 2500(W)*2500(D)*2300(H) |
| Cabin System | Made by galvanized steel, powder coated on the surface with high glossy powder coating. |
| Powder Recovery System | Dust filter cartridges*6 sets, each size 600mm*Ø320mm Solenoid valves*6 sets, the holeØ20mm, DC24V Automatic pulse blowback to recovery the powder |
| Circulation System | 1 set of centrifugal blower, 7.5kW motor, air flow 6000~9000m³/h The blower is connected with cabin by anti-flame flexible tube. The exhaust vent of the blower could be adjusted in four directions |
| Blower Holder System | Made by 80*80 square tubes Independent from the booth to prevent the resonance and reduce the noise. |
| Power Supply | 380V/3phase/50Hz or customized |
| Lighting System | 6 sets of LED lights, high brightness and energy saving, 18W each, long lifetime and could reach the rated brightness within 1s. |
| Control System | 1 set, control the fan, lights and powder recovery system |
Advantages:
- Effortless installation
- Ground-level design for seamless loading and unloading of workpieces
- Reduced operational expenses
- Energy-efficient performance
- Extended service life
Structure:
Modular assembly structure for straightforward transport. Ground-level access facilitates painting operations. Constructed from galvanized steel with a high-gloss powder-coated finish.
Lighting System:
Equipped with 6 high-brightness, energy-efficient LED lights (18W each). These lights offer a long lifespan and instant brightness within a second.
Powder Recovery System:
Features six dust filter cartridges (600mm*Ø320mm) and six solenoid valves (holeØ20mm, DC24V). Automated pulse blowback ensures efficient powder recovery.
Circulation System:
Outfitted with a centrifugal blower (7.5kW motor) delivering airflow of 6,000 ~ 9,000m³/h. Includes an anti-flame flexible tube connecting to the cabin with an exhaust vent adjustable in four directions.
Blower Holder System:
Built using 80*80 square tubes for noise reduction and resonance prevention. Independently situated from the booth for superior stability.
Experience our high-efficiency powder coating process, guaranteeing a flawless finish for all your products.
Process Steps:
- Pre-treatment: Eliminate rust and oil from the product's surface.
- Drying: Thoroughly dry workpieces post pre-treatment.
- Powder Coating: Apply powder manually or automatically for meticulous precision.
- Powder Curing: Heat in the oven at 180ºC for 20 minutes to achieve a durable coating.
- Cooling: Allow natural cooling for optimal coating results.
