Basic Info.
Model NO.
102F
Type
Automatic Screen Printing Machine
Style
Planographic Press
Structure
Stop-cylinder Press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Print Interface
No
System Supported
No
Max.Paper Size
1020X720mm
Min.Paper Size
560X350mm
Border
8mm~15mm
Paper Thickness
120~400GSM
Transport Package
Strong Woodcase
Specification
1020x720mm
Origin
China
HS Code
8443192900
Production Capacity
30 Sets/Year
Product Description
Swing Cylinder Automatic Cylinder Screen Printing Machine
Auto swing cylinder screen printing machine series is a well-recognized auto flat screen press with high speed and high precision, ranking top in China suppliers.It is advantageous for well designed structure with single piece or streamline paper feeding equipment.Frequency variance control motor and whole-process auto close-monitoring device are equipped. It can be controlled by PLC program Panel or centralized controller.Only one person is necessary for operation, which greatly saves labor and boosts production. This machine can be used in printing soft and semi-soft material featured of 100-350 g/m2,especially with UV ink for colors such as golden and silvery of Ceramics sticker,Package,Label and Cards, and etc. It's vivid colors, stereoscopic effect and strong covering achieves a superior positions over other print presses.
| Model | MX-780 | MX-1020 |
| Max.printing size | 780x540mm | 1020x700mm |
| Min.paper size | 350x270mm | 350x560mm |
| Max.paper size | 780x540mm | 1020x720mm |
| Border | ≤15mm | ≤15mm |
| Paper thickness | 100-400gsm | 100-400gsm |
| Screen frame size | 940x940mm | 1280x1140mm |
| Max.printing speed | 1000-3300pcs/h | 1000-3000pcs/h |
| Weight | 3800kg | 5000kg |
| Power(kg) | 3P4N 50/60HZ 380V 9KW | 3P4N 50/60HZ 380V 15KW |
| Dimension(LxWxH) | 4100x2100x1270 | 4570x2700x1430 |

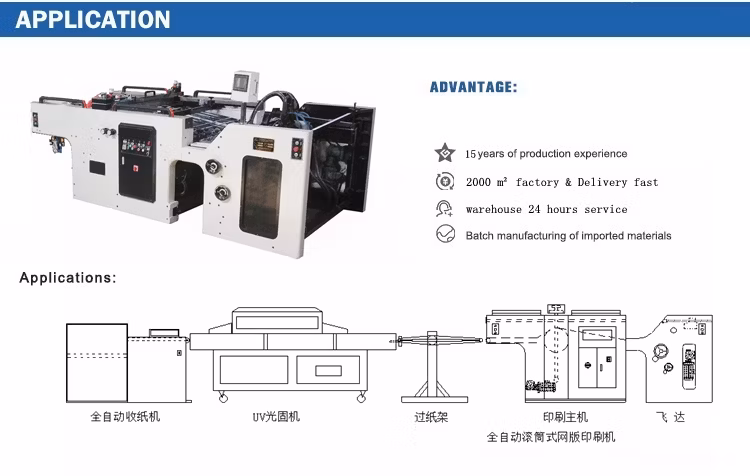

- Automatic paper feeder
- Cylinder Printing Unit
- UV drying and conveying system
- Automatic paper collecting system
